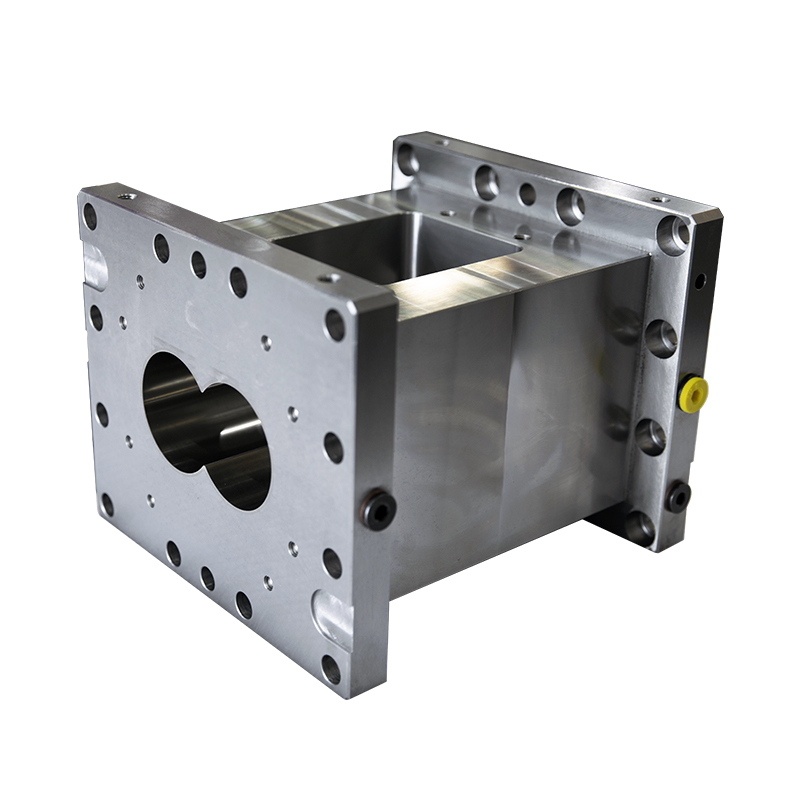

HRC58-62 Twin Screw Extruder Barrel 45# Steel Ni60 30KG

제품 상세정보

원래 장소: 중국 장수

브랜드 이름: ZHITIAN

지불과 운송 용어

최소 주문 수량: 1

가격: $400-500

최상의 가격을 얻으세요

제품 상세정보

제품 설명

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                            Twin screw extruder barrel HRC58-62, 45# steel extruder barrel Ni60, 30KG extruder barrel with warranty


재료:	45# 강철 + Ni60	무게:	30kg
경도:	HRC58-62	내마모성:	높은
부식 저항:	예	예비품 종류:	통
모델 유형:	20/30/35/36/40/50/52/53/58/60/65/75/92/95/110/125/135	디자인 유형:	구성 요소
합금 유형:	ZT615, ZT625	배럴 유형:	견고하고 직접적인 화합물, 완전한 라이너, 복합 합금 라이너
라이너 재료:	38CRMOALA, 440C 스테인레스 스틸, CR12MOV, SKD11/SKD61, DC53, W6MO5CR4V2, ZTCR26, SAM26/WR13, CPM10V/WR5	기본 자료:	S45C
처리 기술:	분말 야금	구성 요소 구조:	유연한 조합
서비스 수명:	긴

재료:	45# 강철 + Ni60
무게:	30kg
경도:	HRC58-62
내마모성:	높은
부식 저항:	예
예비품 종류:	통
모델 유형:	20/30/35/36/40/50/52/53/58/60/65/75/92/95/110/125/135
디자인 유형:	구성 요소
합금 유형:	ZT615, ZT625
배럴 유형:	견고하고 직접적인 화합물, 완전한 라이너, 복합 합금 라이너
라이너 재료:	38CRMOALA, 440C 스테인레스 스틸, CR12MOV, SKD11/SKD61, DC53, W6MO5CR4V2, ZTCR26, SAM26/WR13, CPM10V/WR5
기본 자료:	S45C
처리 기술:	분말 야금
구성 요소 구조:	유연한 조합
서비스 수명:	긴

HRC58-62 Twin Screw Extruder Barrel 45# Steel Ni60 30KG

58 Double Screw Open Barrel, Twin Extruder Machine Parts High Hardness

Product Description

Color	Metal
Standard	GB ISO 9001
Model	Type 20/30/35/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135
Brand	zhitian
Quality	High wear-resistance and corrosion-resistance
Used	For twin screw extruder

Efficient and stable, widely used in industries: The twin-screw extruder barrels produced by zhitian are widely used in plastics, rubber, chemicals, food, new energy and other industries. Countless extruders on the market use our accessories. Their efficient and stable operation demonstrates our product quality.

Advanced "building block" design: The main screw and barrel of the split twin-screw extruder adopt an advanced modular design. The screw is composed of various screw blocks installed on the mandrel and barrel lining, forming a sleeve that can be adjusted according to different screw blocks. This design allows flexible combination of screw component structures to meet various material processing requirements.

Reduced maintenance costs: The modular design enables partial replacement of worn components, preventing complete screw or barrel scrapping and significantly lowering maintenance expenses. This approach saves both time and money by eliminating the need for full unit replacements.

Continuous material research and development: zhitian has developed proprietary materials including ZT615 nickel-based alloy and ZT625 nickel-based alloy tungsten carbide, specifically engineered for wear-resistant and corrosion-resistant applications.

Barrel Types and Materials

Solid Barrel	Hastelloy-C Alloy, 38CrMoAla, 304/316/316L Stainless Steel

Direct Compound Barrel	ZT610 Ni60 Based+Cu, ZT615 Ni60 Based, ZT625 Ni60 Based+Tungsten carbide, HIP Cobalt Based+Tungsten carbide

Complete Liner Barrel	38CrMoAla Liner, 440C Stainless Steel Liner, Cr12MoV Liner, SKD11/SKD61 Liner, DC53 Liner, W6Mo5Cr4V2 Liner, ZTCr26 Liner, SAM26/WR13 Liner, CPM10V/WR5 Liner, ZT610 Ni60 Based Liner+Cu, ZT615 Ni60 Based Liner, ZT625 Ni60 Based Liner+Tungsten carbide, HIP Cobalt Based Liner+Tungsten carbide

Product Showcase

Why Choose Zhitian's Extruder Barrel?

With extensive experience in twin-screw extruder screw barrels, we have developed various innovative designs that significantly increase output and enhance service life. We provide OEM services for renowned extruder manufacturers worldwide, establishing ourselves as one of China's premier extruder barrel manufacturers.

Our Advantages

Extended service life
Material selection based on specific wear resistance and corrosion resistance requirements
Professional technical team for precise sample measurement, design, and component combination services
Comprehensive modern management system ensuring 100% qualified products with full traceability
Wide applicability across various material processing applications

Company Profile

NANJING ZHITIAN specializes in manufacturing replacement parts for twin screw extruders with over 20 years of experience. We produce gearboxes, barrels, and screw elements for twin screw extruders, along with refurbishment services for gearboxes and barrels.

Our company features strong technical capabilities, excellent processing equipment, advanced production technology, strict inspection systems, and comprehensive after-sales service, earning consistent customer praise. Our products have been successfully implemented in major global brands.

We maintain meticulous attention to detail at every production stage and look forward to progressing together with our partners.

Global Excellence in Twin Screw Extruder Components

As a leading global manufacturer of twin screw extruder components including gearboxes, barrels, screw elements, and core shafts, we have earned worldwide trust through exceptional quality and professional service.

Our products serve diverse industries including plastics, rubber, synthetic fibers, food packaging, pharmaceuticals, and emerging fields like lithium battery production for new energy applications.

We prioritize customer needs with personalized product designs and expert technical support, continuously improving our products and services to maintain global leadership.

Frequently Asked Questions

Q1: What products and services does your company primarily offer?

A: We manufacture key components for twin-screw extruders including gearboxes, barrels, screw elements, and core shafts, renowned for excellent quality and professional service worldwide.

Q2: What are the features of your twin-screw extruder gearboxes?

A: Our gearboxes feature high efficiency, stability, and durability, with precision design and high-quality materials ensuring outstanding performance across industrial applications.

Q3: In which industries are your products widely used?

A: Our products serve plastics, rubber, synthetic fibers, food packaging, pharmaceuticals, and emerging fields like lithium battery production.

Q4: How can we obtain customized solutions?

A: We provide personalized designs and technical support. Contact our customer service team for detailed customization options.

Q5: How can we establish a partnership with your company?

A: We welcome long-term partnerships worldwide. Contact our customer service team for more information.

Q6: What is your company's guarantee for product quality?

A: We maintain rigorous quality control processes to ensure products meet the highest standards, consistently exceeding customer expectations.
