제품 상세정보
원래 장소: 중국 장수
브랜드 이름: ZHITIAN
지불과 운송 용어
최소 주문 수량: 10
가격: $450-500
재료: |
38crmoala |
무게: |
30kg |
치수: |
360*310*240 mm |
구멍 직경: |
94mm |
중심 거리: |
78 밀리미터 |
내마모성: |
높은 내마모 |
부식 저항: |
부식성 |
배럴 유형: |
솔리드 배럴, 직접 화합물 배럴, 완전한 라이너 배럴, 복합 합금 라이너 배럴 |
재료 옵션: |
Hastelloy-C 합금, 304/316/316L 스테인레스 스틸, ZT615 NI60 기반, ZT625 NI60 기반+텅스텐 카바이드 |
라이너 재료: |
38crmoala 라이너, 440C 스테인레스 스틸 라이너, CR12MOV 라이너, SKD11/SKD61 라이너, DC53 라이너, W6MO5CR4V2 라이너, ZTCR26 라이너 |
모델 범위: |
유형 20/30/35/36/40/50/52/53/58/60/65/75/92/95/110/125/135 |
디자인 유형: |
빌딩 블록 디자인 |
구성 요소 구조: |
유연하게 결합 된 나사 블록 |
재료 R & D: |
ZT615 니켈 기반 합금, ZT625 니켈 기반 합금 텅스텐 카바이드 |
서비스 수명: |
긴 서비스 수명 |
재료: |
38crmoala |
무게: |
30kg |
치수: |
360*310*240 mm |
구멍 직경: |
94mm |
중심 거리: |
78 밀리미터 |
내마모성: |
높은 내마모 |
부식 저항: |
부식성 |
배럴 유형: |
솔리드 배럴, 직접 화합물 배럴, 완전한 라이너 배럴, 복합 합금 라이너 배럴 |
재료 옵션: |
Hastelloy-C 합금, 304/316/316L 스테인레스 스틸, ZT615 NI60 기반, ZT625 NI60 기반+텅스텐 카바이드 |
라이너 재료: |
38crmoala 라이너, 440C 스테인레스 스틸 라이너, CR12MOV 라이너, SKD11/SKD61 라이너, DC53 라이너, W6MO5CR4V2 라이너, ZTCR26 라이너 |
모델 범위: |
유형 20/30/35/36/40/50/52/53/58/60/65/75/92/95/110/125/135 |
디자인 유형: |
빌딩 블록 디자인 |
구성 요소 구조: |
유연하게 결합 된 나사 블록 |
재료 R & D: |
ZT615 니켈 기반 합금, ZT625 니켈 기반 합금 텅스텐 카바이드 |
서비스 수명: |
긴 서비스 수명 |
| Color | Metal |
|---|---|
| Standard | GB ISO 9001 |
| Model | Type 20/30/35/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135 |
| Brand | Zhitian |
| Quality | High wear-resistance and corrosion-resistance |
| Used | For twin screw extruder |

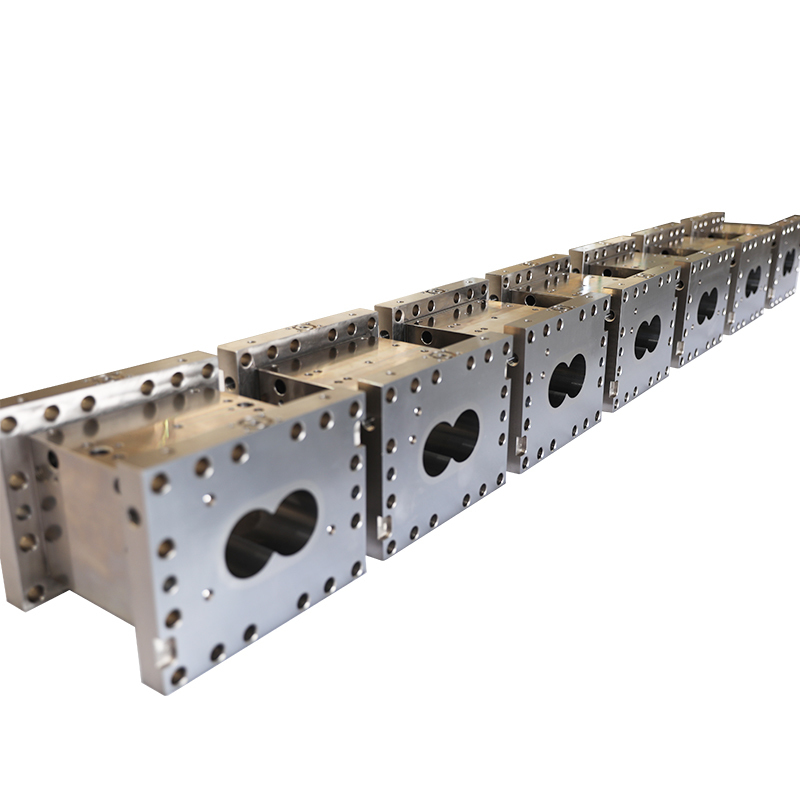

Our twin-screw extruder barrels are widely used in plastics, rubber, chemicals, food, and new energy industries. Countless extruders worldwide use our accessories, proving their efficiency and stability.
The main screw and barrel feature an innovative "building block" design. The screw consists of various screw blocks installed on the mandrel and barrel lining, forming an adjustable sleeve. This design allows flexible component combinations to meet different material processing requirements, achieving optimal material transportation, refinement, shearing, and discharge.
| Solid Barrel | Hastelloy-C Alloy, 38CrMoAla, 304/316/316L Stainless Steel |
|---|---|
| Direct Compound Barrel | ZT610 Ni60 Based+Cu, ZT615 Ni60 Based, ZT625 Ni60 Based+Tungsten carbide, HIP Cobalt Based+Tungsten carbide |
| Complete Liner Barrel | 38CrMoAla Liner, 440C Stainless Steel Liner, Cr12MoV Liner, SKD11/SKD61 Liner, DC53 Liner, W6Mo5Cr4V2 Liner, ZTCr26 Liner, SAM26/WR13 Liner, CPM10V/WR5 Liner, ZT610 Ni60 Based Liner+Cu, ZT615 Ni60 Based Liner, ZT625 Ni60 Based Liner+Tungsten carbide, HIP Cobalt Based Liner+Tungsten carbide |
|---|---|
| Compound Alloy Liner Barrel | S45C+ZT610 Ni60 Based Liner+Cu, S45C+ZT615 Ni60 Based Liner, S45C+ZT625 Ni60 Based Liner+Tungsten carbide, S45C+HIP Cobalt Based Liner+Tungsten carbide |
With extensive experience in twin-screw extruder screw barrels, we've developed various innovative designs that significantly increase output and enhance service life. We provide OEM services for global extruder manufacturers and are recognized as one of China's premier extruder barrel manufacturers.
NANJING ZHITIAN specializes in manufacturing replacement parts for twin screw extruders with over 20 years of experience. We produce gearboxes, barrels, and screw elements for twin screw extruders, along with refurbishment services.
Our company features strong technical capabilities, excellent processing equipment, advanced production technology, strict inspection systems, and comprehensive after-sales service. Our products have been successfully applied in major global brands.
We pay meticulous attention to every detail and look forward to progressing together with our partners.
As a leading global manufacturer of twin screw extruder components, we provide gearboxes, barrels, screw elements, and core shafts known for their efficiency, stability, and durability. Our products serve industries including plastics, rubber, synthetic fibers, food packaging, pharmaceuticals, and new energy applications like lithium battery slurry coating.
We offer personalized product designs and technical support to create significant value for our customers. Through continuous innovation, we maintain our leadership in the competitive global market.
We welcome long-term partnerships worldwide. Contact us for any product inquiries or requirements.
