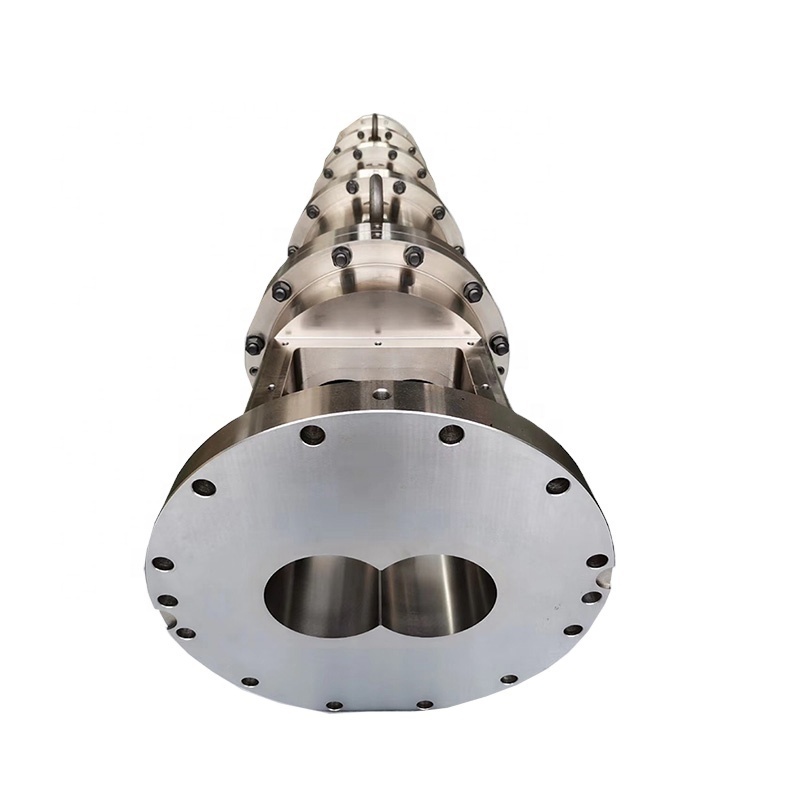

52mm Twin Screw Extruder Barrel for ABS Processing 300 RPM

제품 상세정보

원래 장소: 중국 장수

브랜드 이름: zhitian

지불과 운송 용어

최소 주문 수량: 1

가격: $280-300

최상의 가격을 얻으세요

제품 상세정보

제품 설명

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                            52mm twin screw extruder barrel, ABS processing extruder barrel, 300 RPM extruder screw barrel


나사 디자인:	이중 스크류	트윈 스크류 유형:	병렬 트윈 스크류를 동반합니다
나사 재료:	42CRMO	나사 직경:	52mm
나사 속도:	300 rpm	중심 거리:	63mm
무게:	30kg	차원:	240x210x170
재료 옵션:	CR26, 니켈 기반 합금, SAM26	처리 유형:	공동 지출
배럴 재료:	Hastelloy-C 합금, 38crmoala, 304/316/316L 스테인리스 스틸	라이너 재료:	38crmoala 라이너, 440C 스테인리스 스틸 라이너, CR12MOV 라이너, SKD11/SKD61 라이너, DC53 라이너, W6MO5CR4V2 라이너, ZTCR26 라이너
복합 합금 라이너:	S45C+ZT610 NI60 기반 라이너+Cu, S45C+ZT615 NI60 기반 라이너, S45C+ZT625 NI60 기반 라이너+텅스텐 카바이드, S45C+힙 코발트 라이너+텅	플라스틱 가공:	ABS
핵심 구성 요소:	베어링, 기어박스, 나사

나사 디자인:	이중 스크류
트윈 스크류 유형:	병렬 트윈 스크류를 동반합니다
나사 재료:	42CRMO
나사 직경:	52mm
나사 속도:	300 rpm
중심 거리:	63mm
무게:	30kg
차원:	240x210x170
재료 옵션:	CR26, 니켈 기반 합금, SAM26
처리 유형:	공동 지출
배럴 재료:	Hastelloy-C 합금, 38crmoala, 304/316/316L 스테인리스 스틸
라이너 재료:	38crmoala 라이너, 440C 스테인리스 스틸 라이너, CR12MOV 라이너, SKD11/SKD61 라이너, DC53 라이너, W6MO5CR4V2 라이너, ZTCR26 라이너
복합 합금 라이너:	S45C+ZT610 NI60 기반 라이너+Cu, S45C+ZT615 NI60 기반 라이너, S45C+ZT625 NI60 기반 라이너+텅스텐 카바이드, S45C+힙 코발트 라이너+텅
플라스틱 가공:	ABS
핵심 구성 요소:	베어링, 기어박스, 나사

52mm Twin Screw Extruder Barrel for ABS Processing 300 RPM

Professional Manufacturer Screw and Barrel for Plastic Twin Screw Extruder Machine

Color	Metal
Standard	GB ISO 9001
Model	Type 20/30/35/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135
Brand	zhitian
Quality	High wear-resistance and corrosion-resistance
Used	For twin screw extruder

Efficient and stable, widely used in industries: The twin-screw extruder barrels produced by zhitian are widely used in plastics, rubber, chemicals, food, new energy and other industries. Countless extruders on the market use our accessories. And efficient and stable operation, these prove our strength.

Advanced "Building Block" Design

The main screw and barrel of the split twin-screw extruder adopt an advanced "building block" design. The screw is composed of various screw blocks installed on the mandrel and barrel lining, forming a sleeve that can be adjusted according to different screw blocks. This design allows the screw component structure to be flexibly combined according to the process requirements of the material variety to achieve material transportation, refinement, shearing, and discharge. This effectively solves the difficult-to-consider contradiction between the versatility and specificity of the screw, achieving the purpose of one machine with multiple uses.

Reduced Maintenance Costs

Another advantage of the "building block" design is that worn screw and barrel components can be partially replaced, preventing the entire screw or barrel from being scrapped and greatly reducing maintenance costs. This means you save time and money without having to replace the entire unit or buy an entirely new barrel.

Continuous Material Research and Development

zhitian has its own powder metallurgy equipment and has developed materials such as ZT615 nickel-based alloy and ZT625 nickel-based alloy tungsten carbide, which are widely used in wear-resistant and corrosion-resistant usage scenarios.

Type Of Barrels and Materials

Solid Barrel	Hastelloy-C Alloy, 38CrMoAla, 304/316/316L Stainless Steel

Direct Compound Barrel	ZT610 Ni60 Based+Cu, ZT615 Ni60 Based, ZT625 Ni60 Based+Tungsten carbide, HIP Cobalt Based+Tungsten carbide.

Complete Liner Barrel	38CrMoAla Liner, 440C Stainless Steel Liner, Cr12MoV Liner, SKD11/SKD61 Liner, DC53 Liner, W6Mo5Cr4V2 Liner, ZTCr26 Liner, SAM26/WR13 Liner, CPM10V/WR5 Liner, ZT610 Ni60 Based Liner+Cu, ZT615 Ni60 Based Liner, ZT625 Ni60 Based Liner+Tungsten carbide, HIP Cobalt Based Liner+Tungsten carbide.

Compound Alloy Liner Barrel	S45C+ZT610 Ni60 Based Liner+Cu, S45C+ZT615 Ni60 Based Liner, S45C+ZT625 Ni60 Based Liner+Tungsten carbide, S45C+HIP Cobalt Based Liner+Tungsten carbide.

Products Show

Why Choose Zhitian's Extruder Barrel?

The screw barrel of a twin-screw extruder. We have extensive experience in twin-screw extruder screw barrels. Through continuous practice, we have developed a variety of new screw barrels, which, with different screw designs, greatly increase output and enhance service life. We also provide OEM services for well-known extruder complete machine manufacturers in the world. Zhitian is one of the best extruder barrel manufacturers in China.

Our Advantages

Long service life
Material: Choose materials with high wear resistance, corrosion resistance or both according to customer needs
The professional technical team can not only provide timely and accurate sample measurement and design, but also provide technical services for component combinations
A complete modern management system ensures that customers receive 100% qualified products. At the same time, the quality of each product is traceable
Wide range of applications: The range of use is universal and can be applied to the processing of a variety of materials

Company Profile

NANJING ZHITIAN is specialized in the manufacturing of replacement parts for twin screw extruder. So for has more than 20 years experience. Manufacturing gearboxes, barrels and screw elements of twin screw extruder. We also provide you the refurbishment service for gearboxes and barrels.

My company with strong technical force, excellent processing equipment, advanced production technology, strict inspection system and perfect after-sales service, praised by customers. Since my company's products have been mature application in major global well-known brands.

All ZT keep pay attention to every step of the details, we are looking forward to the forge ahead together with you!

Global Excellence

As a leading manufacturer of key components such as twin screw extruder gearboxes, barrels, screw elements, and core shafts on a global scale, our company has earned the trust of customers worldwide through exceptional quality and professional service.

Our twin screw extruder gearboxes, known for their efficiency, stability, and durability, provide robust power solutions to customers across the globe. The unique design of our barrels ensures the stable operation of equipment, while our screw elements and core shafts, crafted with precision manufacturing processes, guarantee precise equipment performance.

Our products find extensive applications globally, ranging from the processing of high-molecular materials like plastics, rubber, and synthetic fibers to packaging in industries such as food, pharmaceuticals, and even emerging fields like lithium battery slurry coating for new energy sources. We consistently prioritize customer needs, offering personalized product designs and expert technical support to address practical challenges and create significant value.

Committed to continuous improvement in product quality and service standards, we strive for excellence to meet the evolving needs of our customers. We firmly believe that only through continuous innovation and enhancement can we maintain a leading position in the fiercely competitive global market.

We look forward to establishing long-term and stable partnerships with customers worldwide, collaborating to create a better future. If you have any questions or requirements regarding our products or services, please feel free to contact us at any time.

FAQ

Q1: What products and services does your company primarily offer?

A: Our company is a leading global manufacturer of key components for twin-screw extruders, mainly providing critical components such as twin-screw extruder gearboxes, barrels, screw elements, and core shafts. We are renowned for our excellent quality and professional service, catering to the processing needs of various industries worldwide.

Q2: What are the features of your twin-screw extruder gearboxes?

A: Our twin-screw extruder gearboxes are characterized by high efficiency, stability, and durability, providing powerful propulsion for our customers. Precision design and high-quality materials ensure outstanding performance across a variety of industrial applications.

Q3: In which industries are your products widely used?

A: Our products find extensive applications in industries such as processing high-molecular materials like plastics, rubber, and synthetic fibers, as well as in packaging for food, pharmaceuticals, and emerging fields like lithium battery slurry coating in new energy sources.

Q4: How can we obtain customized solutions?

A: We provide personalized product designs and professional technical support for our customers. If you require customized solutions, feel free to contact our customer service team at any time, and we will provide detailed customization options.

Q5: How can we establish a partnership with your company?

A: We welcome the establishment of long-term and stable partnerships with customers worldwide. If you have any questions or requirements regarding our products or services, you can contact our customer service team for more information.

Q6: What is your company's guarantee for product quality?

A: We are committed to delivering high-quality products and ensure compliance with the highest standards through rigorous quality control processes. Our quality assurance system is designed to meet customer expectations and exceed their anticipations.
