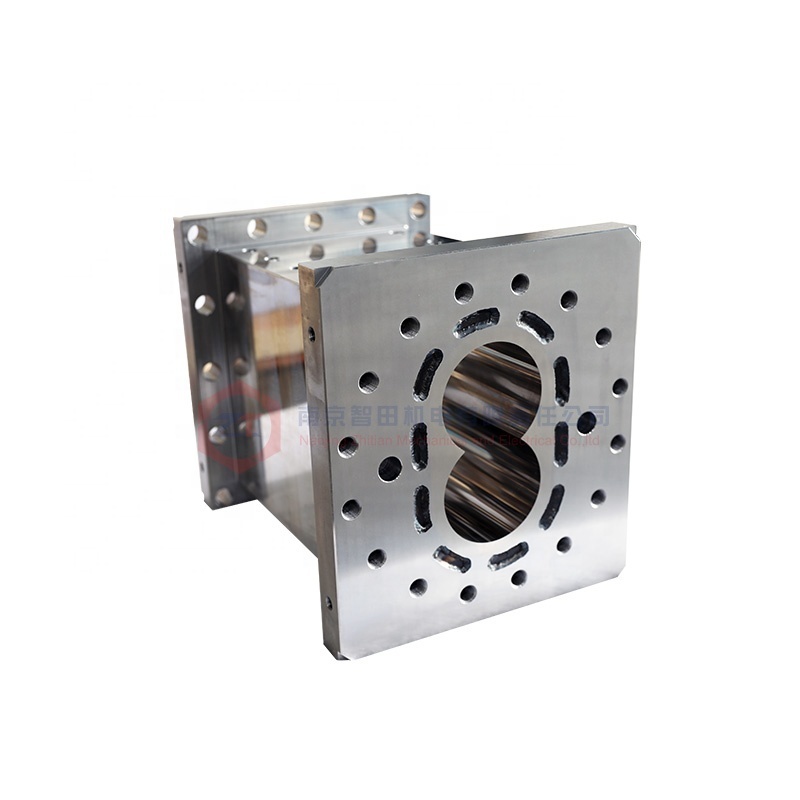

Ni60 Nickel Alloy Twin Screw Barrel 16.5-400mm for Extruder

제품 상세정보

원래 장소: 중국 장수

브랜드 이름: ZHITIAN

지불과 운송 용어

최소 주문 수량: 1

가격: $480-500

최상의 가격을 얻으세요

제품 상세정보

제품 설명

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                            Ni60 nickel alloy twin screw barrel, extruder screw barrel 16.5-400mm, twin screw barrel for extruder


재료:	바이메탈 합금	무게:	50kg
예비품 종류:	통	나사 디자인:	이축 스크류
재료 옵션:	HIPX260, CR12MOV, WR13, W6MO5CR4V2, WR30	범위:	16.5 ~ 400mm
모델:	유형 20/30/35/36/40/50/52/53/58/60/65/75/92/95/110/125/135	품질:	높은 내마모성 및 내식성
솔리드 배럴 재료:	Hastelloy-C 합금, 38crmoala, 304/316/316L 스테인리스 스틸	직접 복합 배럴 재료:	ZT610 NI60 기반+CU, ZT615 NI60 기반, ZT625 NI60 기반+텅스텐 카바이드, 고관절+텅스텐 카바이드
완전한 라이너 배럴 재료:	38crmoala 라이너, 440C 스테인리스 스틸 라이너, CR12MOV 라이너, SKD11/SKD61 라이너, DC53 라이너, W6MO5CR4V2 라이너, ZTCR26 라이너	복합 합금 라이너 배럴 재료:	S45C+ZT610 NI60 기반 라이너+Cu, S45C+ZT615 NI60 기반 라이너, S45C+ZT625 NI60 기반 라이너+텅스텐 카바이드, S45C+힙 코발트 라이너+텅
응용 프로그램 기계:	트윈 스크류 압출기	나사 유형:	모듈 식 트윈 나사
기본 합금:	NI60 니켈베이스 합금

재료:	바이메탈 합금
무게:	50kg
예비품 종류:	통
나사 디자인:	이축 스크류
재료 옵션:	HIPX260, CR12MOV, WR13, W6MO5CR4V2, WR30
범위:	16.5 ~ 400mm
모델:	유형 20/30/35/36/40/50/52/53/58/60/65/75/92/95/110/125/135
품질:	높은 내마모성 및 내식성
솔리드 배럴 재료:	Hastelloy-C 합금, 38crmoala, 304/316/316L 스테인리스 스틸
직접 복합 배럴 재료:	ZT610 NI60 기반+CU, ZT615 NI60 기반, ZT625 NI60 기반+텅스텐 카바이드, 고관절+텅스텐 카바이드
완전한 라이너 배럴 재료:	38crmoala 라이너, 440C 스테인리스 스틸 라이너, CR12MOV 라이너, SKD11/SKD61 라이너, DC53 라이너, W6MO5CR4V2 라이너, ZTCR26 라이너
복합 합금 라이너 배럴 재료:	S45C+ZT610 NI60 기반 라이너+Cu, S45C+ZT615 NI60 기반 라이너, S45C+ZT625 NI60 기반 라이너+텅스텐 카바이드, S45C+힙 코발트 라이너+텅
응용 프로그램 기계:	트윈 스크류 압출기
나사 유형:	모듈 식 트윈 나사
기본 합금:	NI60 니켈베이스 합금

Ni60 Nickel Alloy Twin Screw Barrel 16.5-400mm for Extruder

OEM Manufacturer's Ni60 Nickel Base Alloy Liner Modular Twin Screw Barrel

High-performance twin screw barrel for PP & ABS extrusion in plastic and rubber machinery applications.

Product Specifications

Color	Metal
Standard	GB ISO 9001
Model	Type 20/30/35/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135
Brand	Zhitian
Quality	High wear-resistance and corrosion-resistance
Application	For twin screw extruder

Key Features

Efficient and stable performance: Our twin-screw extruder barrels are widely used in plastics, rubber, chemicals, food, and new energy industries, proving our product reliability through countless installations.

Modular "building block" design: The screw and barrel feature an innovative modular design allowing flexible configuration of screw blocks on the mandrel and barrel lining. This enables customized material processing including transportation, refinement, shearing, and discharge.

Cost-effective maintenance: The modular design allows replacement of only worn components rather than entire assemblies, significantly reducing maintenance costs and downtime.

Advanced materials: Zhitian has developed proprietary nickel-based alloys including ZT615 and ZT625 with tungsten carbide, optimized for wear-resistant and corrosion-resistant applications.

Barrel Types & Materials

Barrel Type	Materials
Solid Barrel	Hastelloy-C Alloy, 38CrMoAla, 304/316/316L Stainless Steel
Direct Compound Barrel	ZT610 Ni60 Based+Cu, ZT615 Ni60 Based, ZT625 Ni60 Based+Tungsten carbide, HIP Cobalt Based+Tungsten carbide
Complete Liner Barrel	38CrMoAla Liner, 440C Stainless Steel Liner, Cr12MoV Liner, SKD11/SKD61 Liner, DC53 Liner, W6Mo5Cr4V2 Liner, ZTCr26 Liner, SAM26/WR13 Liner, CPM10V/WR5 Liner, ZT610 Ni60 Based Liner+Cu, ZT615 Ni60 Based Liner, ZT625 Ni60 Based Liner+Tungsten carbide, HIP Cobalt Based Liner+Tungsten carbide
Compound Alloy Liner Barrel	S45C+ZT610 Ni60 Based Liner+Cu, S45C+ZT615 Ni60 Based Liner, S45C+ZT625 Ni60 Based Liner+Tungsten carbide, S45C+HIP Cobalt Based Liner+Tungsten carbide

Product Gallery

Why Choose Zhitian Extruder Barrels?

With extensive experience in twin-screw extruder technology, we've developed innovative barrel designs that significantly increase output and service life. As a trusted OEM supplier to leading extruder manufacturers worldwide, Zhitian stands among China's premier extruder barrel producers.

Our Advantages

Extended service life through premium materials and manufacturing
Custom material selection for optimal wear and corrosion resistance
Expert technical support for component measurement, design, and configuration
Comprehensive quality control with full product traceability
Versatile application across diverse material processing requirements

Company Profile

Nanjing Zhitian specializes in manufacturing replacement parts for twin screw extruders with over 20 years of experience. We produce gearboxes, barrels, and screw elements while offering refurbishment services for existing equipment.

Our company combines strong technical expertise, excellent processing equipment, advanced production technology, rigorous inspection systems, and comprehensive after-sales service, earning consistent customer praise. Our products have been successfully implemented in major global brands.

We maintain meticulous attention to detail at every production stage and look forward to progressing together with our partners.

Global Excellence in Extruder Components

As a leading global manufacturer of twin screw extruder components including gearboxes, barrels, screw elements, and core shafts, we've earned worldwide trust through exceptional quality and professional service.

Our products serve diverse industries from plastics and rubber processing to food packaging, pharmaceuticals, and emerging applications like lithium battery slurry coating for new energy solutions. We provide customized product designs and technical support to address specific processing challenges.

Committed to continuous improvement, we maintain our market leadership through innovation and quality enhancement. We welcome long-term partnerships with customers worldwide to create mutual success.

Frequently Asked Questions

Q1: What products and services does your company primarily offer?

A: We manufacture key components for twin-screw extruders including gearboxes, barrels, screw elements, and core shafts, serving various industries worldwide with premium quality and professional service.

Q2: What are the features of your twin-screw extruder gearboxes?

A: Our gearboxes deliver high efficiency, stability, and durability through precision design and premium materials, ensuring reliable performance across industrial applications.

Q3: In which industries are your products widely used?

A: Our components serve plastics, rubber, synthetic fiber processing, food/pharmaceutical packaging, and emerging applications like lithium battery production.

Q4: How can we obtain customized solutions?

A: Contact our technical team for personalized product designs and engineering support tailored to your specific processing requirements.

Q5: How can we establish a partnership with your company?

A: We welcome long-term collaborations. Contact our sales team to discuss your needs and explore partnership opportunities.

Q6: What is your company's guarantee for product quality?

A: We implement rigorous quality control to exceed industry standards, with comprehensive testing and traceability ensuring consistent product excellence.
