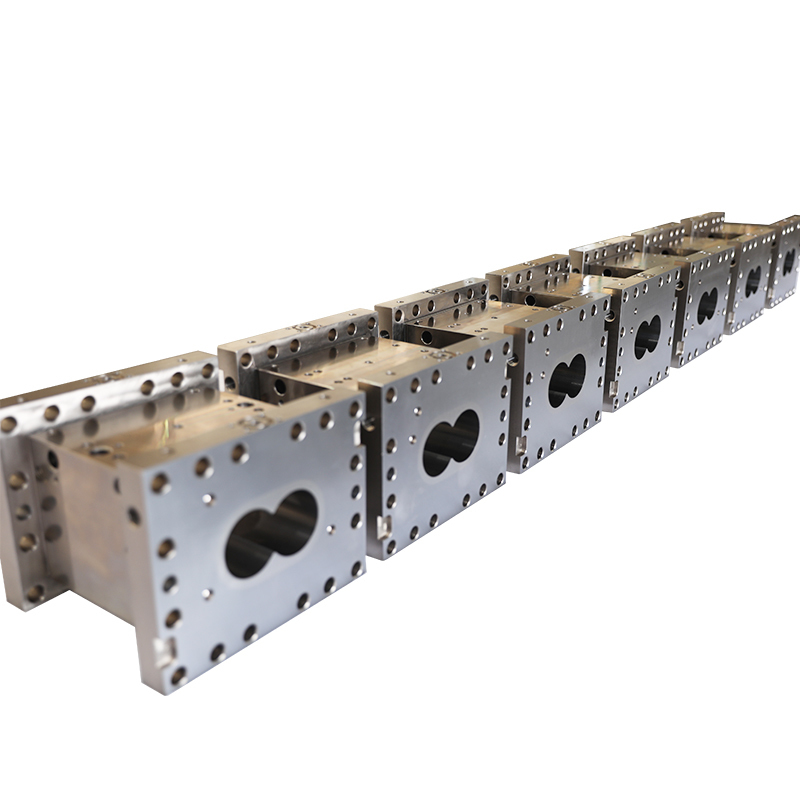

Twin Screw Extruder Barrel 16.5-400mm High Wear-Resistant Cr12MoV

제품 상세정보

원래 장소: 중국 장수

브랜드 이름: ZHITIAN

지불과 운송 용어

최소 주문 수량: 1

가격: $280-300

최상의 가격을 얻으세요

제품 상세정보

제품 설명

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                            Twin screw extruder barrel Cr12MoV, High wear-resistant extruder barrel 16.5-400mm, Extruder screw barrel with Cr12MoV alloy


무게:	50kg	나사 디자인:	이축 스크류
재료:	HIPX260, CR12MOV, WR13, W6MO5CR4V2, WR30	직경 범위:	16.5 ~ 400mm
모델 유형:	유형 20/30/35/36/40/50/52/53/58/60/65/75/92/95/110/125/135	솔리드 배럴 재료:	Hastelloy-C 합금, 38crmoala, 304/316/316L 스테인리스 스틸
직접 복합 재료:	ZT610 NI60 기반+CU, ZT615 NI60 기반, ZT625 NI60 기반+텅스텐 카바이드, 고관절+텅스텐 카바이드	완전한 라이너 재료:	38crmoala 라이너, 440C 스테인리스 스틸 라이너, CR12MOV 라이너, SKD11/SKD61 라이너, DC53 라이너, W6MO5CR4V2 라이너, ZTCR26 라이너
화합물 라이너 재료:	S45C+ZT610 NI60 기반 라이너+Cu, S45C+ZT615 NI60 기반 라이너, S45C+ZT625 NI60 기반 라이너+텅스텐 카바이드, S45C+힙 코발트 라이너+텅	내마모성:	높은 약점
부식 저항:	높은 내식성	디자인 유형:	빌딩 블록 디자인
예비품 종류:	통	품질 표준:	영국 ISO 9001
색상:	금속

무게:	50kg
나사 디자인:	이축 스크류
재료:	HIPX260, CR12MOV, WR13, W6MO5CR4V2, WR30
직경 범위:	16.5 ~ 400mm
모델 유형:	유형 20/30/35/36/40/50/52/53/58/60/65/75/92/95/110/125/135
솔리드 배럴 재료:	Hastelloy-C 합금, 38crmoala, 304/316/316L 스테인리스 스틸
직접 복합 재료:	ZT610 NI60 기반+CU, ZT615 NI60 기반, ZT625 NI60 기반+텅스텐 카바이드, 고관절+텅스텐 카바이드
완전한 라이너 재료:	38crmoala 라이너, 440C 스테인리스 스틸 라이너, CR12MOV 라이너, SKD11/SKD61 라이너, DC53 라이너, W6MO5CR4V2 라이너, ZTCR26 라이너
화합물 라이너 재료:	S45C+ZT610 NI60 기반 라이너+Cu, S45C+ZT615 NI60 기반 라이너, S45C+ZT625 NI60 기반 라이너+텅스텐 카바이드, S45C+힙 코발트 라이너+텅
내마모성:	높은 약점
부식 저항:	높은 내식성
디자인 유형:	빌딩 블록 디자인
예비품 종류:	통
품질 표준:	영국 ISO 9001
색상:	금속

Twin Screw Extruder Barrel 16.5-400mm High Wear-Resistant Cr12MoV

Wear-Resistant Bimetallic Extrusion Screw and Barrel for Plastic Extruders

Product Overview

Color	Metal
Standard	GB ISO 9001
Model	Type 20/30/35/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135
Brand	zhitian
Quality	High wear-resistance and corrosion-resistance
Used	For twin screw extruder

The twin-screw extruder barrels produced by zhitian are widely used in plastics, rubber, chemicals, food, new energy and other industries. Countless extruders on the market use our accessories, proving our strength in efficient and stable operation.

Advanced Building Block Design

The main screw and barrel of the split twin-screw extruder adopt an advanced "building block" design. The screw is composed of various screw blocks installed on the mandrel and barrel lining, forming a sleeve that can be adjusted according to different screw blocks.

This design allows the screw component structure to be flexibly combined according to the process requirements of the material variety to achieve material transportation, refinement, shearing, and discharge. This effectively solves the difficult-to-consider contradiction between the versatility and specificity of the screw, achieving the purpose of one machine with multiple uses.

Reduced Maintenance Costs

Another advantage of the "building block" design is that worn screw and barrel components can be partially replaced, preventing the entire screw or barrel from being scrapped and greatly reducing maintenance costs. This means you save time and money without having to replace the entire unit or buy an entirely new barrel.

Material Innovation

zhitian has its own powder metallurgy equipment and has developed materials such as ZT615 nickel-based alloy and ZT625 nickel-based alloy tungsten carbide, which are widely used in wear-resistant and corrosion-resistant usage scenarios.

Barrel Types and Materials

Solid Barrel	Hastelloy-C Alloy, 38CrMoAla, 304/316/316L Stainless Steel
Direct Compound Barrel	ZT610 Ni60 Based+Cu, ZT615 Ni60 Based, ZT625 Ni60 Based+Tungsten carbide, HIP Cobalt Based+Tungsten carbide
Complete Liner Barrel	38CrMoAla Liner, 440C Stainless Steel Liner, Cr12MoV Liner, SKD11/SKD61 Liner, DC53 Liner, W6Mo5Cr4V2 Liner, ZTCr26 Liner, SAM26/WR13 Liner, CPM10V/WR5 Liner, ZT610 Ni60 Based Liner+Cu, ZT615 Ni60 Based Liner, ZT625 Ni60 Based Liner+Tungsten carbide, HIP Cobalt Based Liner+Tungsten carbide
Compound Alloy Liner Barrel	S45C+ZT610 Ni60 Based Liner+Cu, S45C+ZT615 Ni60 Based Liner, S45C+ZT625 Ni60 Based Liner+Tungsten carbide, S45C+HIP Cobalt Based Liner+Tungsten carbide

Product Gallery

Why Choose Zhitian's Extruder Barrel?

We have extensive experience in twin-screw extruder screw barrels. Through continuous practice, we have developed a variety of new screw barrels, which, with different screw designs, greatly increase output and enhance service life. We also provide OEM services for well-known extruder complete machine manufacturers worldwide.

Our Advantages

Long service life
Material: Choose materials with high wear resistance, corrosion resistance or both according to customer needs
Professional technical team providing timely sample measurement, design, and technical services
Complete modern management system ensuring 100% qualified products with traceable quality
Wide range of applications for processing various materials

Company Profile

NANJING ZHITIAN specializes in manufacturing replacement parts for twin screw extruders with over 20 years of experience. We manufacture gearboxes, barrels and screw elements of twin screw extruders, and also provide refurbishment services for gearboxes and barrels.

Our company features strong technical force, excellent processing equipment, advanced production technology, strict inspection system and perfect after-sales service, praised by customers worldwide. Our products have mature applications in major global well-known brands.

We pay attention to every detail and look forward to progressing together with our customers.

Global Excellence

As a leading manufacturer of key components such as twin screw extruder gearboxes, barrels, screw elements, and core shafts on a global scale, our company has earned the trust of customers worldwide through exceptional quality and professional service.

Our twin screw extruder gearboxes are known for their efficiency, stability, and durability. The unique design of our barrels ensures stable equipment operation, while our screw elements and core shafts guarantee precise performance.

Our products find extensive applications globally, from processing high-molecular materials to packaging in food, pharmaceuticals, and emerging fields like lithium battery slurry coating. We prioritize customer needs, offering personalized designs and expert technical support.

We are committed to continuous improvement to maintain our leading position in the global market and look forward to establishing long-term partnerships with customers worldwide.

Frequently Asked Questions

Q1: What products and services does your company primarily offer?

A: Our company is a leading global manufacturer of key components for twin-screw extruders, mainly providing critical components such as twin-screw extruder gearboxes, barrels, screw elements, and core shafts. We are renowned for our excellent quality and professional service, catering to the processing needs of various industries worldwide.

Q2: What are the features of your twin-screw extruder gearboxes?

A: Our twin-screw extruder gearboxes are characterized by high efficiency, stability, and durability, providing powerful propulsion for our customers. Precision design and high-quality materials ensure outstanding performance across a variety of industrial applications.

Q3: In which industries are your products widely used?

A: Our products find extensive applications in industries such as processing high-molecular materials like plastics, rubber, and synthetic fibers, as well as in packaging for food, pharmaceuticals, and emerging fields like lithium battery slurry coating in new energy sources.

Q4: How can we obtain customized solutions?

A: We provide personalized product designs and professional technical support for our customers. If you require customized solutions, feel free to contact our customer service team at any time, and we will provide detailed customization options.

Q5: How can we establish a partnership with your company?

A: We welcome the establishment of long-term and stable partnerships with customers worldwide. If you have any questions or requirements regarding our products or services, you can contact our customer service team for more information.

Q6: What is your company's guarantee for product quality?

A: We are committed to delivering high-quality products and ensure compliance with the highest standards through rigorous quality control processes. Our quality assurance system is designed to meet customer expectations and exceed their anticipations.
